GP35H
Robot for precise medium payload applications with internal cable routing
Overview

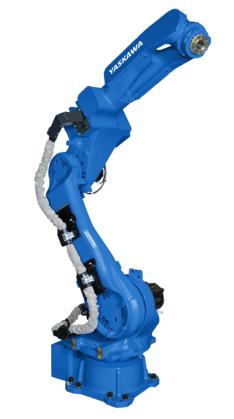

The MOTOMAN GP35H is a high-speed hollow wrist robot featuring an extended reach for large parts. The electrical and additional cables run through the inside of the wrist, which improves the mobility of the robot and at the same time minimises the risk of damage; there are no interfering contours due to external cable packages.
This 35 kg payload robot is suitable for a precise medium payload applications like pick & place, machine loading, material handling, assembly, dosing and deburring as well as grinding. As no interference factors need to be taken into account, this robot offers superior performance in vision applications, offline and on-site teaching operations and is advantageous in offline programming.
The internal cable routing allows maximum acceleration and thus fast and reliable movements. As a result of its high moment of inertia, the GP35H handles large grippers and parts within large working ranges with its reach of 2070 mm.
KEY BENEFITS:
- Internal cable routing eliminates interference contours,cable snagging and enables maximum acceleration
- High speed and high precision
- Dust and liquid-tight wrist (protection class IP67)
- Large horizontal reach
Technical Details
- Number of Axis
- 6
- Payload
- 35 kg
- Max Working Range
- 2070 mm
- Repeatability
- 0.07 mm
- Weight
- 545 kg
- Power Supply
- 4 kVA
- Maximum Speed S Axis
- 180 °/s
- Maximum Speed L Axis
- 180 °/s
- Maximum Speed U Axis
- 200 °/s
- Maximum Speed R Axis
- 350 °/s
- Maximum Speed B Axis
- 350 °/s
- Maximum Speed T Axis
- 400 °/s
- Mounting Options
- Ceiling, Wall, Floor
- Further Specifications
- x No
