AR Series

AR900

Small Arc Welding Robot for compact welding cells

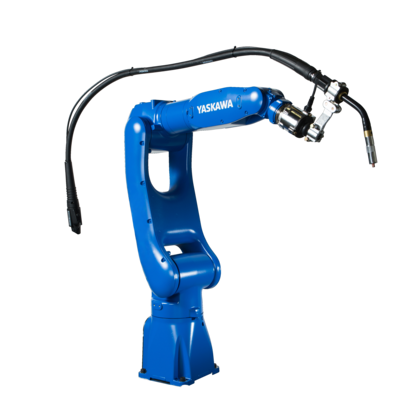

Kompaktowy robot do spawania łukowego MOTOMAN AR900 | © Yaskawa Polska

Overview

The compact MOTOMAN AR900 arc welding robot provides high path accuracy and great stability.

With a payload of up to 7 kg and a working range of 927 mm this robot enables accurate arc welding of small workpieces with high-quality results.

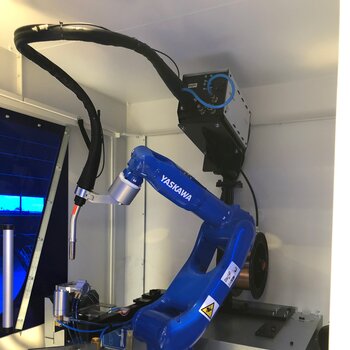

Supporting the full range of the well known MOTOMAN welding functionality, AR900 robots offer a good alternative to collaborative welding robots when batch sizes are higher and speed is required. They are doing a great job in our compact turnkey welding cells ArcWorld RS Micro and HS Mini.



Technical Details

  • Number of Axis
  • 6
  • Payload
  • 7 kg
  • Max Working Range
  • 927 mm
  • Repeatability
  • 0.01 mm
  • Weight
  • 37 kg
  • Power Supply
  • 1 kVA
  • Maximum Speed S Axis
  • 375 °/s
  • Maximum Speed L Axis
  • 315 °/s
  • Maximum Speed U Axis
  • 410 °/s
  • Maximum Speed R Axis
  • 550 °/s
  • Maximum Speed B Axis
  • 550 °/s
  • Maximum Speed T Axis
  • 1000 °/s
  • Mounting Options
  • Ceiling, Wall, Floor
  • Further Specifications
  • x No
