AR Series

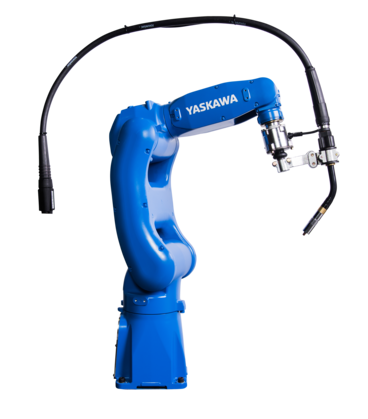

AR700

Small Arc Welding Robot with 727 mm reach

Kompaktowy robot do spawania łukowego MOTOMAN AR700 | © Yaskawa Polska

Overview

The compact MOTOMAN AR700 arc welding robot provides high path accuracy and great stability.

With a payload of up to 8 kg and a working range of 727 mm this robot enables accurate arc welding of small workpieces with high-quality results.

Supporting the full range of the well known MOTOMAN welding functionality, AR700 robots offer a good alternative to our collaborative welding robots when batch sizes are larger or short cycle times are required.

Technical Details

  • Number of Axis
  • 6
  • Payload
  • 8 kg
  • Max Working Range
  • 727 mm
  • Repeatability
  • 0.01 mm
  • Weight
  • 35 kg
  • Power Supply
  • 1 kVA
  • Maximum Speed S Axis
  • 455 °/s
  • Maximum Speed L Axis
  • 385 °/s
  • Maximum Speed U Axis
  • 520 °/s
  • Maximum Speed R Axis
  • 550 °/s
  • Maximum Speed B Axis
  • 550 °/s
  • Maximum Speed T Axis
  • 1000 °/s
  • Mounting Options
  • Ceiling, Wall, Floor
  • Further Specifications
  • x No
