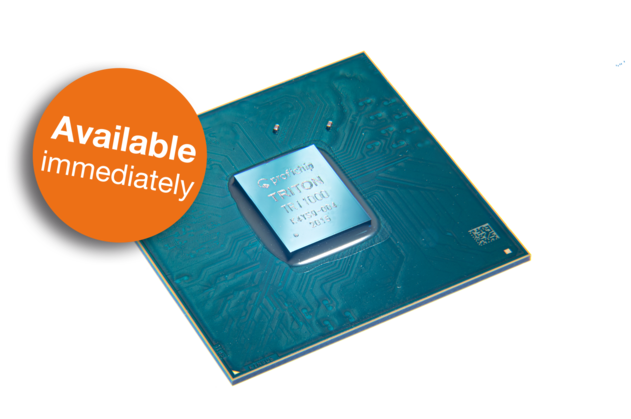

TRITON

Gigabit Ethernet Communication Controller, PLC, Backplane Master and Motion Controller in One Chip

From 45.41 €

Overview

Triton combines industrial gigabit Ethernet communication with a fast and
reliable backplane system as well as a powerful motion/automation multicore
processor in one product with low power dissipation.

Discover our Trition landing page

Main Features

• Future ready with TSN support, DDR4, PCIexpress and Security Core
• No heatsink needed thanks to low power consumption
• Low Total Cost of Ownership due to integrated functionalities (Backplane Master, PHYs, etc.)
• 3 cores with high single thread performance best suited for motion and PLC tasks

Discover New Ways
• For high-speed number crunching
• For industrial real-time communication
• For reliable and synchronous backplane communication
• Everything secure and with low power Processor System

Processor System
• 3 x ARM Cortex A17 cores with up to 1.26 GHz
• 64-bit floating point unit per core
• 64/32 kB instruction/data cache
• 2 Mb of L2 cache (with ECC) Memory Interfaces

Memory Interfaces
• 64-Bit DDR4-2000 RAM (16 GB/s bandwidth, with ECC support)
• MMC/SD card controller QuadSPI flash controller
• 8/16-bit SRAM controller (Master/Slave)
• 8-bit NAND flash controller Serial Interfaces

Serial Interfaces
• PCIexpress up to Gen3, max. 4 lanes, max. 3 controllers, max. 40 Gbit/s in Full Duplex, RC/EP virtual channels, time     synchronization
• USB 2.0 host/device controller (480 Mbit/s)
• 2 x UART (12 Mbit/s)
• 3 x SPI Master/Slave controller, max. 78 Mbit/s
••2 x I²C

Security
• Secure boot (signed and encrypted)
• integrated eFuse for customer key storage
• AES 256 GCM hardware acceleration
•True random number generator
• IOMPU (memory protection for I/O devices)


Advanced Real-Time Gigabit Ethernet Solution
• 4 x Gbit Ethernet port
• 2 x integrated 100BaseT Ethernet PHYs
• All 4 Ethernet ports can be combined as one switch
• in different configurations (software-defined networking)
• Software-defined protocols
» PROFINET® I/O-Device RT/IRT
» EtherCAT Slave/Master
» Mechatrolink-III/IV Master/Slave
» EtherNet/IP Adapter*
» TSN ready
» More on demand


Classic Fieldbus Options
• 2 x PROFIBUS® Master (12 Mbit/s)
• PROFIBUS Slave (12 Mbit/s)
• 2 x CAN controller (1 Mbit/s)


Fieldbus Options and Stacks
• Licensed with TRITON
» PROFIBUS Slave DP-V0
» PROFINET IO Device RT/IRT library
» EtherCAT Slave


• Purchasing stacks (source codes)
» PROFIBUS Slave DP-V1/V2
» PROFIBUS Master
» PROFINET I/O Device RT/IRT
» PROFINET I/O Controller RT
» Mechatrolink-III/IV Master/Slave
» CANopen
» Others on demand


Backplane Bus Solution: SliceBus®
• Master for I/O Modules
• Up to 64 nodes
• High-speed 192 Mbit/s
• Alarm and error handling
• Time Synchronization


Other Features
• 2 x DMA controllers
• IRQ controller
• Watchdog (4 instances)
• 18 x 32-bit timers
• Technology Function Module (TechIO)
» Max. 32 In / 22 Out (shared pins)
» Configurable digital input filter
» 4 x counter channels
» Ready for incremental up to 4 encoders
» 4 x PWM channels
» 2 x SSI encoder interfaces


Package
• FCBGA784:
23 x 23 mm², 0.8 mm pitch

*Under development
