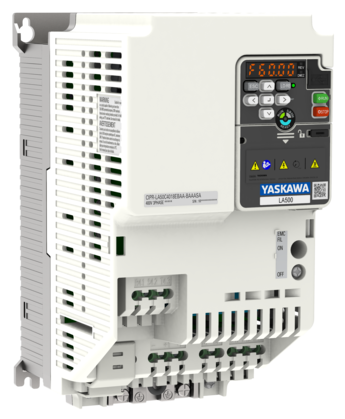

LA50C4045EBB

• Input Power Supply
• 400 V

• Rated Output Current (HD)
• 45 A

• 50% ED Rated Output Current
• x No

• Overload Tolerance (ND)
• x No

• Overload Tolerance (HD)
• 165% 60 sec

• Max. Applicable Motor Output (HD)
• 22 kW

• Input Power Phases
• 3-phase

• EMC Filter
• ✓ Yes

• Motor Type
• Induction motor

• Encoder
• x No

• Standards Compliance
• CE, RoHS

• Ambient Temperature (Min)
• -10 °C

• Ambient Temperature (Max)
• 50 °C

• Ambient Temperature (Max) with Derating
• 60 °C

• Max. Humidity (non-condensing)
• 95 %

• Max. Altitude (without Derating)
• 1000 m

• Max. Altitude (with Derating)
• 4000 m

• Height
• 350 mm

• Width
• 190 mm

• Depth
• 251 mm

• Weight
• 8.5 kg

• Cooling method
• Air cooling

• Enclosure
• IP20

• Environmental Specifications
• Standard

• Analog Input
• 2

• Analog Output
• 1

• Digital Input
• 7

• Digital Output
• 3

• Safety Level
• SIL3

• Performance Level
• PL e

• Torque Control
• Standard

• Braking Transistor
• Built-in

• Motor Thermal Protection
• Standard

• Max Output Frequency
• 120 Hz
